1.0uV Ultralow noise DAC power supply regulator 3.3V 5.0V 800mA Maximize

1.0uV Ultralow noise DAC power supply regulator 3.3V 5.0V 800mA

  • Promotion: BUY 2 GET USD30 OFF! limited time only

More details

  • 3.3V Green PCB

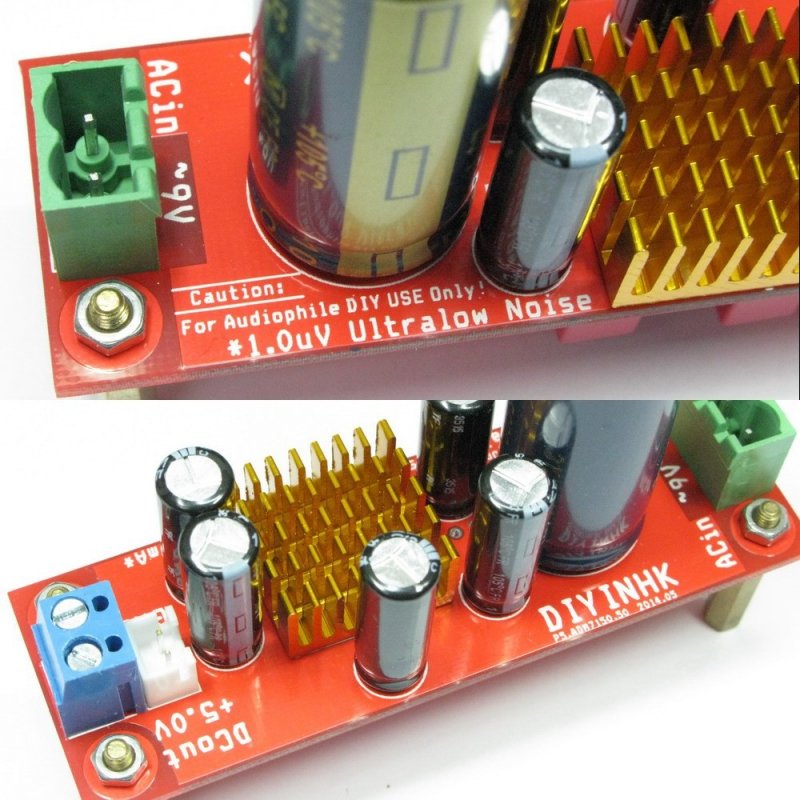

  • 5.0V Red PCB

USD39.00

On sale On sale!

-USD10.00

USD49.00

ProductFrom (qty)Discount
1.0uV Ultralow noise DAC power supply regulator 3.3V 5.0V 800mA2 -USD15.00

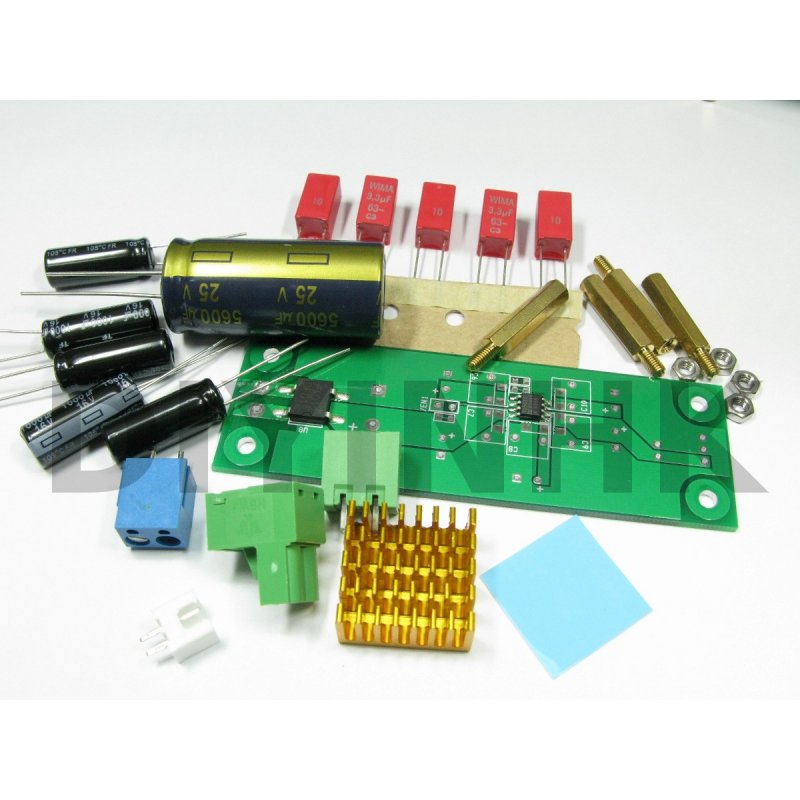

This item includes PCB with Analog Devices newest *1.0uV* ultralow noise regulator ADM7150ARDZ-3.3

*All SMT component are soldered, thru-hole component are not soldered.

This is the best ultralow noise power supply regulator for Diyer to enjoy, use of decade old 78xx / lm3xx /lt10xx is simply kidding for audiophiles.

Features:

1) Industry's lowest 1.0uV ultralow noise ADM7150ARDZ 3.3V regulator.

http://www.analog.com/en/power-management/linear-regulators/adm7150/products/product.html

2) Panasonic low ESR EEUFC 5600uF, EEUFR 1000uF capacitor and the red WIMA film capacitor are sourced from authorized distributor Arrow Electronics directly (guarantee no fake product from China)

3) The PCB follows the official demo circuit for ultimate performance.

http://www.analog.com/static/imported-files/data_sheets/ADM7150.pdf

5) Compact size 30mm x 90mm

Assembly Instruction:

1) Double check the polarity of 5600uF and five 1000uF capacitor is correct before connect AC power input to the PCB, the capacitor will explode immediately if it is reversed connected. No return is accepted after the pcb is soldered.

2) Attention: The heatsink is selectable to install and it is recommended for output >0.5A. Please read the above image for installation tips.

This item is in limited stock, maximum 4pcs per buyer. Please contact us if you want to buy more than 4, thanks.

Partial BOM cost from mouser if purchase the included components individually

100% Genuine Guarantee! Our ADM7150 are shipped from Analog Devices directly

  • Length 90mm
  • Width 30mm
  • Thickness 1.6mm
